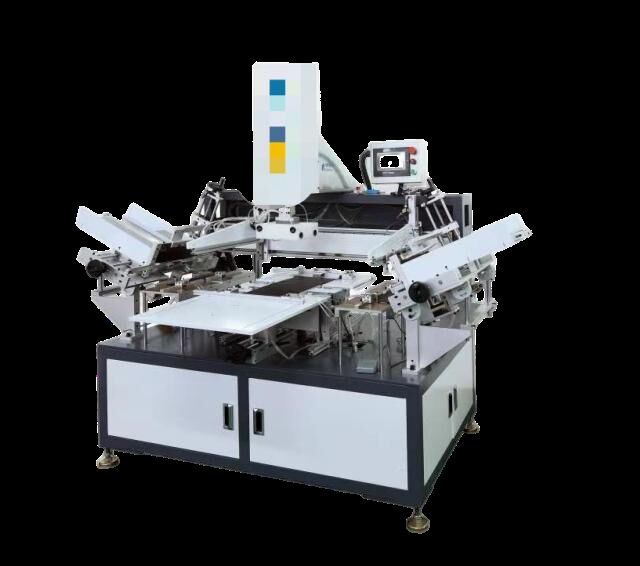

LSY - WSM1200 Semi Automatic Collapsible Wings Assembling Machine
During the collapsible box production, the wings positioning job was a shortcoming in automation industry. We noticed this inconvenience of our clients and decided to tackle this issue. In this case, after years of enthusiasm and devotion, joining with our professional experience, we finally come out with new equipment which can produce the 5-board collapsible box.
This machine is easy for adjustment, is competent for a wild range of boxes, and is with low defective rate. All these make our machine your best choice for the stronger technology and superior quality.
Key Features
- Automatically completes folding, positioning, and pressing to form the box.
- Easy machine setup, saving production and labor costs.
- Semi-automatic servo control system—easy to operate and highly stable.
- Unique single-station assembly and forming design, convenient for one-person operation..
- Easy to switch forming modules to accommodate different box types.
Excel cut consists of following sections:
|
The side wing feeding section allows for easy material feeding;
Brush is used to prevent scratching the surface during the process;
Both sides follow the same structure.
|
|
This is the machine control panel, designed for simple and user-friendly operation.
|
|
This is the placement area for the cover paper (case), and the position can be freely adjusted according to the size.
|
Technical Specification
|
Model
|
LSY-WSM1200 |
|
Max Cover Size
|
L1200*W580 mm |
|
Min Cover Size
|
L360*W120 mm |
|
Max Side wing Size
|
L700*W150 mm |
|
Min Side wing Size
|
L200*W40 mm |
|
Max Outer Distance Between Sides
|
880mm |
|
Min Inner Distance Between Sides
|
120mm |
|
Working Speed
|
≤12pcs/min |
|
Power
|
2.5KW |
|
Power Supply
|
220V/50Hz |
|
Air Pressure
|
0.5-0.6mpa |
|
Machine Dimensions
|
2550x1700x2000mm |
|
Machine Weight
|
400KG |
Example
|
Box type
|
Box before wrap
|
Finished box |
|

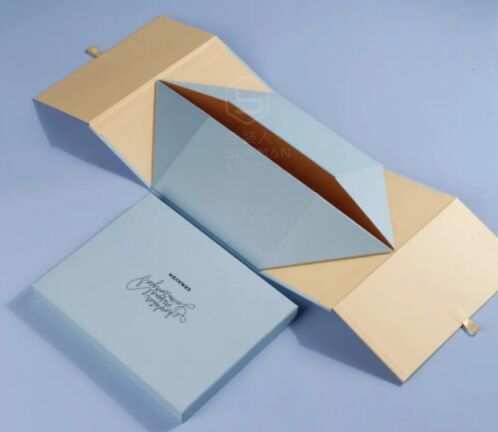

5 pcs Board
collapsible box
|
|
|
|
|
|
|
7 pcs Board
collapsible box
|
|
|
Process Flow
Packing and Shipping
Company Profile
Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.
Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.
Upholding the development philosophy of "Customer First, Serve the Globe" and adhering to the strategy of "Strive for Perfection, Forge New Paths," LiShunyuan is committed to R&D of high-performance, high-efficiency products for the packaging industry, driving intelligent automation advancement.
Our Services & Strengths
We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.
Certifications
Manufacturing Workshop
Industry Exhibitions
Quality After-Sales Service Commitment
- 1 Hour Service: We respond to service requests within one hour with solution recommendations
- 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
- Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
- Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
- Pre-sale Service: Comprehensive training programs with professional engineers before delivery
- Sale Services: Installation, debugging, and one week of free training services upon machine arrival
- After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
